Máquina de soldadura por láser de aluminio

HanWei YAG Energy Negative Feedback Laser Welding Machine for Aluminum Battery Sealing

HanWei YAG Energy Negative Feedback Laser Welding Machine for Aluminum Battery Sealing

Nombre De La Marca:	HanWei
Número De Modelo:	HW-Y-8/25/80/160/300/500
Cuota De Producción:	1 set
Precio:	USD / Set
Condiciones De Pago:	T/T
Capacidad De Suministro:	2000 sets / año

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

Modelo:

HW-Y-8/25/80/160/300/500

Longitud de onda:

1064 nm

potencia de salida:

8/20/80/160/300/500W

Estabilidad de potencia:

± 2.5 / ± 3.0

energía de pulso:

5J /25J /50J /70 /100J

Ancho de pulso:

ms 15

Frecuencia:

30/100 Hz

Peso:

100/170/180/220/240 kg

Ingresar eléctrico:

AC220 50/60 Hz/AC380 50/60 Hz

Modo de trabajo:

Legumbres

Dimensión:

955*415*870 mm/ 1175 mm × 515 mm × 980 mm/ 1360 mm × 630 mm × 1120 mm

Modo de enfriamiento:

Aire y agua

Equipos:

1/1.2/3/6/12/16 kW

Detalles de empaquetado:

Empacado de madera contrachapada de exportación

Capacidad de la fuente:

2000 sets / año

Resaltar:

YAG laser welding machine for aluminum

aluminum battery sealing laser welder

negative feedback laser welding machine

Descripción del producto

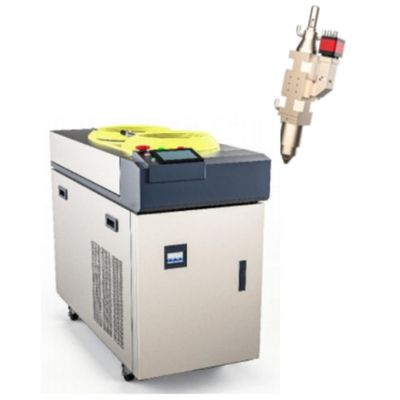

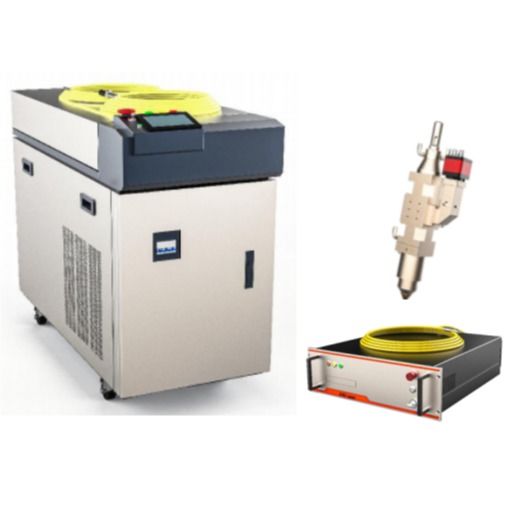

HanWei YAG Energy Negative Feedback Laser Welding Machine for Aluminum Battery Sealing

This state-of-the-art laser welding system features fiber optic conductive output, supporting both single and multi-optical path configurations with flexible workbench compatibility. The innovative optical system design incorporates imported quartz optical lenses with advanced coating technology, delivering high damage resistance and stable light velocity. Includes our exclusive PID adaptive power feedback system as standard.

Key Features

Fiber optic transmission enables energy and time splitting capabilities
Proprietary optical design with imported optical lenses provides high damage resistance and stable light speed
Integrated PID adaptive power feedback technology ensures consistent welding results

Technical Specifications

Model	HW-Y-8	HW-Y-25	HW-Y-80	HW-Y-160	HW-Y-300	HW-Y-500
Input Electric	AC220 50/60 Hz	AC220 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz	AC380 50/60 Hz
Wavelength	1064nm	1064nm	1064nm	1064nm	1064nm	1064nm
Output Power	8 W	25 W	80 W	160 W	300 W	500 W
Pulse Energy	5 J	25 J	50 J	50 J	70/100 J	70/100 J
Pulse width	15 ms	15 ms	15 ms	15 ms	15 ms	15 ms
Frequency	30 Hz	30 Hz	100 Hz	100 Hz	100 Hz	100 Hz
Power Stability	± 2.5	± 2.5	± 3.0	± 3.0	± 3.0	± 3.0
Working Mode	Pulse	Pulse	Pulse	Pulse	Pulse	Pulse
Cooling mode	Air	Air	Water	Water	Water	Water
Weight	100 Kg	100 Kg	170 Kg	180 Kg	220 Kg	240 Kg
Equipment	1 Kw	1.2 Kw	3 Kw	6 Kw	12 Kw	16 Kw
Dimension	955415870 mm	1175mm515mm980mm	1360mm630mm1120mm

Applications

Optical communication parts, USB ports, mobile device accessories, 18650 battery tops, battery tabs, electrical terminals, hardware parts, kitchen and bathroom fittings, jewelry making, elevator sheets, home appliances, motor parts, corrugated tubes, battery manufacturing, solar energy uses, optical communication casings, and aerospace industry components.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As one of the few companies globally certified as both a national high-tech enterprise and a "specialized, sophisticated, distinctive, and novel" enterprise, we focus exclusively on full-industry-chain R&D, production, and sales of welding-dedicated lasers, control systems, optical systems, and related technologies.

Product Portfolio

Our comprehensive product line includes: Ring-Spot laser welding equipment, blue laser welding systems, blue laser + fiber hybrid welders, Diode + fiber hybrid welders, YAG + Diode hybrid welders, YAG laser welders, Diode laser welders, mold repair laser welders, and QCW laser welders. We also provide compatible laser welding control systems, optical systems, and peripheral support products.

Company Philosophy

Guided by the principle of "R&D as the core, technology as the guarantee, and service as the support," Hanwei Laser serves B2B customers including laser equipment firms and automation companies. Our service objectives emphasize reliable quality, continuous improvement, persistent innovation, and thoughtful support.

Technical Expertise

Our team of technical experts possesses deep expertise in lasers, laser systems, power supplies, control systems, optical design, and welding process research. This extensive theoretical knowledge and practical experience enables us to deliver superior solutions across multiple industries.

Industry Applications

Hanwei Laser products are widely used in new energy batteries, automotive, auto parts, electronic circuits, fiber optic communication devices, mobile phones, home appliances, kitchen and bathroom hardware, precision instruments, measuring tools, jewelry, medical devices, solar energy, eyewear, and motor industries.
