Máquina de soldadura por láser de aluminio

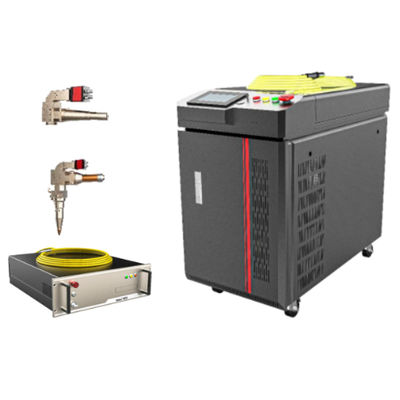

HanWei Diode Laser Welding Machine with Uniform Spot Energy for Plastic Industry

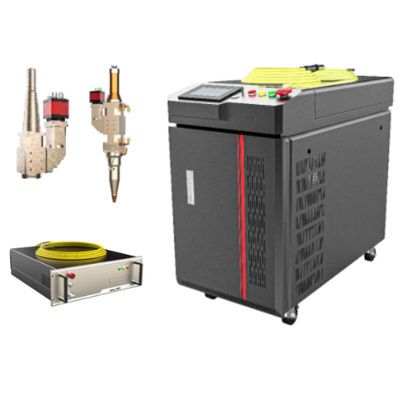

HanWei Diode Laser Welding Machine with Uniform Spot Energy for Plastic Industry

Nombre De La Marca:	HanWei
Número De Modelo:	HW-D
Cuota De Producción:	1 juego
Precio:	USD / Set
Condiciones De Pago:	T/T
Capacidad De Suministro:	2000 sets / año

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

Estructura de la cabeza láser:

Serie T / F / Y 36

Modelo:

Potencia láser:

200W - 1000W

Longitud de onda:

915 nm ± 5

Conexión:

SMA905 / QBH

Método de enfriamiento:

Refrigeración por aire/agua

Modo de enfriamiento:

CW / QCW / PWM con control de sincronización

Núcleo de fibra (um):

100/200 um

Tamaño de la fuente láser:

525*430*225 mm

Detalles de empaquetado:

Empacado de madera contrachapada de exportación

Capacidad de la fuente:

2000 sets / año

Descripción del producto

HanWei Diode Laser Welding Machine with Uniform Spot Energy for Plastic Industry

Hanwei Fiber Diode laser welding machine uses a fiber-coupled semiconductor laser as its core light source. Compared with traditional YAG solid-state lasers, its electro-optical conversion efficiency is significantly improved, reaching a high-efficiency level. This means that under the same welding power, the equipment can output more stable laser energy with lower energy consumption, effectively reducing production costs. In addition, the fiber structure provides better heat dissipation and high stability, allowing the machine to maintain stable output power even during long periods of continuous operation, which helps improve the reliability and consistency of factory production lines.

Key Features

Fiber semiconductor laser with higher electro-optical conversion efficiency.
Compact size and the cost advantage of a self-developed light source control system.
Beam characteristics with a relatively large spot size and uniform energy distribution.
Suitable for plastic welding, soldering, thin metal sheet welding, etc.

Technical Specifications

Model	HW-D
Laser Power	200W - 1000W
Wavelength	915nm ±5
Fiber core(um)	100/200 um
Connection	SMA905 / QBH
Laser Head Structure	T / F/ Y 36 Series
Cooling Mode	Air/Water Cooling
Working Mode	CW / QCW / PWM with timing control
Laser source size	525430225 mm

Primary Applications

Due to its gentle and stable heat input characteristics, the semiconductor laser welding machine is particularly suitable for plastic welding, soldering electronic components, and welding thin metal sheets such as stainless steel and galvanized steel. It has been widely used in industries such as consumer electronics, home appliance manufacturing, automotive electronics, and medical devices. With strong process adaptability, a small welding heat-affected zone, and aesthetically pleasing weld seams, it can effectively improve product consistency and production efficiency, helping enterprises achieve higher quality manufacturing.

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a certified national high-tech and "specialized, sophisticated, distinctive, and novel" enterprise, we focus on full-industry-chain R&D, production, and sales of welding-dedicated lasers and related technologies.

Our Product Portfolio Includes:

Ring-Spot laser welding equipment
Blue laser welding equipment
Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
YAG and Diode laser welding equipment
Mold repair laser welding equipment
QCW laser welding equipment

With a team of technical experts specializing in laser welding R&D, we serve industries including new energy batteries, automotive, electronics, medical devices, and more. Our products deliver irreplaceable welding performance across multiple applications.
