Double Motor Blue Light Hybrid Welding Head for Reducing Welding Spatter on Copper

Double Motor Blue Light Hybrid Welding Head for Reducing Welding Spatter on Copper

Nombre De La Marca:	HanWei
Número De Modelo:	HW-36-70-100200-Y-QBH
Cuota De Producción:	1 juego
Precio:	USD / Set
Condiciones De Pago:	T/T
Capacidad De Suministro:	2000 sets / año

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Shenzhen, China

Certificación:

Modelo:

HW-36-70-100200-Y-QBH

Peso neto:

2,5 kilos

Tamaño del haz láser ajustable:

0.5 - 5 mm

Tipo de cabeza:

Duración focal de enfoque:

150 /200 mm

Tipo de rayo láser:

-、○ 8 del △ del、 del ⊙ del、 del ◎ del、 del、

Tipo de interfaz:

QBH - QBH

Rango de olas accesible:

450 nm + 1064 nm

Longitud focal de colimación:

Azul 70 mm - Fibra 100 mm

Potencia del láser:

Blue Laser 1000 W & Fiber Laser 3000 W

Fuente de láser utilizable:

Fuente de láser azul y fibra

Detalles de empaquetado:

Empacado de madera contrachapada de exportación

Capacidad de la fuente:

2000 sets / año

Descripción del producto

Double Motor Blue Light Hybrid Welding Head for Reducing Welding Spatter on Copper

The double motor blue light hybrid welding head is mainly used for welding medium-thick and complex materials. Its core advantage lies in the dual-oscillating structure with adjustable beam spots, which allows for a wider range of welding process adaptability. During welding, the energy distribution of the beam spot and the oscillation trajectory can be flexibly adjusted according to the type of material, thickness, and joint shape, effectively expanding the welding window and application scope. Compared with traditional laser welding heads, the dual-oscillating structure can improve processing adaptability while ensuring weld strength and formation quality, making it suitable for more complex industrial welding scenarios such as copper, aluminum, stainless steel, and multilayer overlapping welding.

Applications

Widely used in high-performance welding designs for thicker materials.

Key Features

Used for processing thicker materials.
The product has a lower absorption threshold, providing more controllable processing capabilities.
Significantly reduce welding spatter and improve weld formation quality.
Ultra-high absorption rate and low power requirements achieve an optimal balance between cost and effectiveness.

Technical Parameters

Model	HW-36-70-100200-Y-QBH
Laser Power	Blue laser 1000 W & Fiber laser 3000 W
Focusing Focal Length	150 / 200mm
Interface Type	QBH - QBH
Head Type	Y
Net Weight	2.5 Kg
Laser Beam Size Adjustable	0.5 – 5mm
Accessible Wave Range	450nm + 1064nm
Collimation Focal Length	Blue 70 – Fiber 100
Laser Beam Type	―,○,◎,⊙,△,8
Usable Laser Source	Blue and Fiber Laser Source

Performance Advantages

More than 70% high absorptivity
Reduces equipment power requirements compared to red guide beam laser
High and stable welding quality with deep penetration
Smooth welding surface finish
Suitable for thick and highly reflective material welding
Low spark production during welding

About Shenzhen Hanwei Laser

Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to all system integrators. As a global top-tier enterprise accredited as both a national high-tech company and a "specialized, sophisticated, distinctive, and novel" enterprise, it focuses solely on the full-industry-chain R&D, production, and sales of professional laser welding equipment—covering welding-dedicated lasers, laser control systems, laser optical systems, and core laser welding technologies.

Product Portfolio

Ring-Spot laser welding systems, blue laser welding units, blue laser + fiber hybrid welding configurations, Diode + fiber hybrid welding systems, YAG + Diode hybrid welding setups, YAG laser welding devices, Diode laser welding equipment, mold repair laser welding systems, QCW laser welding units. Complementing these offerings are matching laser welding control systems, laser welding optical systems, and auxiliary products for laser welding peripheral machinery.

Core Principles

Upholding the principle of "taking R&D as the core, technology as the foundation, and service as the backbone," Hanwei Laser has long served B-end clients (including laser equipment manufacturers and automation enterprises). It embraces "reliable quality, steady advancement, continuous innovation, and attentive service" as its service tenets.

Applications

Blue light has an ultra-high absorption rate of about 70% in highly reflective metals such as copper. Compared to red light lasers, it can significantly reduce the required power of the equipment, thereby lowering system costs while ensuring welding quality. At the same time, the welding process produces no spatter, the weld seams are smooth and fine, and the formation is stable. It also allows for single-sided welding and double-sided formation, further improving welding efficiency and reliability. Its adaptability to weld seam gaps is also broader, which not only simplifies preliminary assembly requirements but also makes welding operations more flexible and consistent.

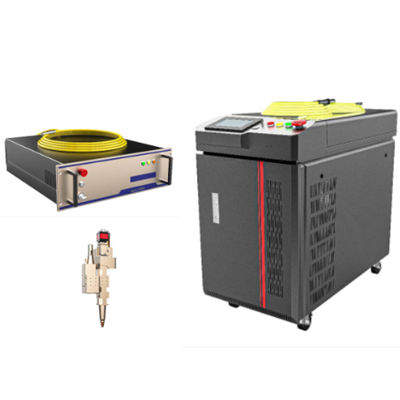

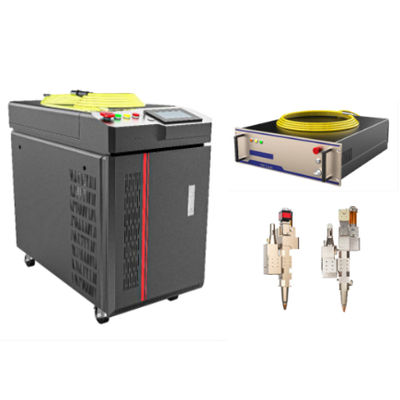

Double Motor Blue Light Hybrid Welding Head for Reducing Welding Spatter on Copper 1

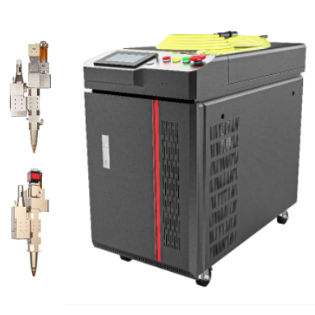

Double Motor Blue Light Hybrid Welding Head for Reducing Welding Spatter on Copper 3
