Máquina de soldadura por láser de aluminio

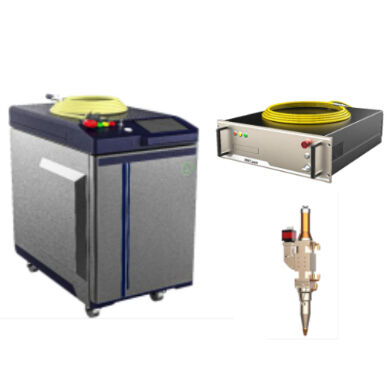

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency

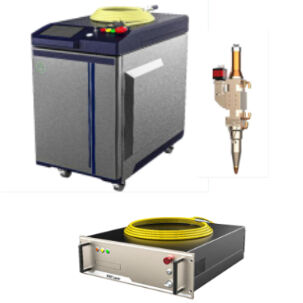

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency

Nombre De La Marca:	HanWei
Número De Modelo:	HW-DH-ECO-MP
Cuota De Producción:	1 JUEGO
Precio:	USD / Set
Condiciones De Pago:	T/T
Capacidad De Suministro:	2000 sets / año

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Shénzhen, China

Certificación:

Potencia del láser:

Hasta 6000w

Materiales de soldadura:

Aluminio / Cobre / Acero inoxidable / Latón / Oro / Plata

Haz láser:

Anillo y punto

Tensión de entrada eléctrica:

380V 50Hz / 60Hz

Base del laser:

50 mm/ 60 mm

Estabilidad de potencia del láser:

Adjustable de potencia láser:

10~100%

frecuencia de salida del láser:

≤ 20 Khz

Método de enfriamiento:

Refrigeración por agua

Consumo de energía:

≤ 30 kW

Detalles de empaquetado:

Empacado de madera contrachapada de exportación

Capacidad de la fuente:

2000 sets / año

Descripción del producto

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency Description:

The full-featured spot-ring laser is a high-performance laser independently developed by our company, featuring independently adjustable energy levels for both inner and outer beam rings. With precision optical design, it delivers high laser spot uniformity and excellent energy stability, meeting the stringent laser output accuracy requirements of complex welding processes.

This product supports flexible switching between multiple spot modes, including Gaussian spot (single inner ring), annular spot, and mixed inner-outer spot. Users can freely switch spot modes on-site according to welding process requirements, greatly enhancing welding adaptability and process flexibility.

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency Features:

1. Self-developed Inner-Outer Ring Beam Laser.

2. Multi-mode Spot Output.

3. Enhanced Welding Quality and Efficiency.

4. Customization and Independent Controllability.

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency Technical Parameters:

Model	HW-DH-2000+2000	HW-DH-3000+3000	HW-DH-2000+4000
Laser Power(W)	≥4000	≥6000
Output power adjustment range	5-100%
Central Wavelength(nm)	1080±3
Maximum modulation frequency (kHz)	0-100
Laser Power Instability	＜ 3%
Indicated Red Light Power (mW)	＞0.5
Output Interface	QBH
Cooling Method	Water Cooling
Output fiber core diameter (μm)	50/100
Fiber optic length	Standard 10 meters (customizable optional)
Circuit breaker capacity	60A
Weight(kg)	102	105
Coolant Temperature(℃)	20-30
Overall Machine Coolant Temperature(℃)	25 (28 in Summer)
Cooling Power	＞12Kw
Storage Temperature (°C)	-10-60
Overall System Flow	＞45 (Loaded)
Machine Size(WHD)	Large 875mm * Width 531mm * Height 769mm
Ambient Temperature	5~40℃
Ambient Humidity	＜70
Rated Input Voltage	Three-phase 380v±10%, 50/60Hz
Maximum Power Consumption(W)	8Kw	12Kw

HW Full-Featured Spot-Ring Laser Welder: Elevating Welding Quality and Efficiency Application:

The spot-ring laser welder is capable of meeting the welding demands of high-quality and ultra-complex processes, and it excels particularly in welding micro-components and special-shaped structures. Its stable energy distribution and flexible spot switching function effectively boost welding efficiency, reduce defects, and improve product yield.

Our company independently undertakes the R&D, production, and sales of the spot-ring laser welder. We can customize power ratio and fiber core diameter ratio according to customer requirements, achieving precise matching for different materials and process needs. The independently controllable core technology ensures product reliability and long-term stability, making it an important innovative equipment in the laser welding industry.

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. boasts a comprehensive range of laser equipment, encompassing both desktop and portable configurations. These systems adopt cutting-edge fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies, elaborately engineered to meet customers' distinctive requirements. Furthermore, the company provides customized solutions for specific applications and offers training and support services, guaranteeing that clients can fully tap into the potential of their laser systems. With branches and subsidiaries spread across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a robust global presence, serving clients around the world.

Hanwei Laser's core focus centers on the laser welding sector. The company is committed to supplying state-of-the-art laser welding technology to international laser integration enterprises, with the aim of delivering high-caliber welding solutions to all integrators. As one of the few national high-tech specialized and innovative enterprises worldwide, it specializes in the research and development, production, and distribution of a diverse range of welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
